Quantum Phenomena & Applications

Mandate

This division is engaged in R&D relating to various quantum phenomena and their applications. Major areas of work are Josephson junctions and single electron tunneling physics, Quantum transport in thin films and hetero structures, Nanoscale measurements, Quantum optics and photon physics, Superconductivity: materials and dissipation physics. Electronics and instrumentation cell supports the development needs of division.

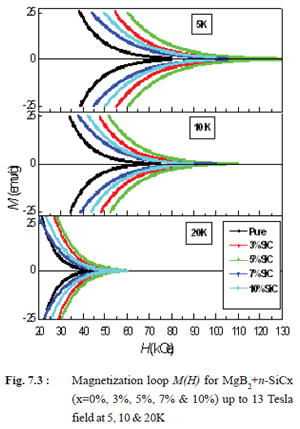

We study the effect of n-SiC addition on the crystal structure, critical temperature, critical current density and flux pinning in MgB2 superconductor. X-ray diffraction patterns show that all the samples have MgB2 as the main phase with very small amount of MgO, further with n-SiC addition the presence of Mg2Si is also noted and confirmed by SEM & EDS. The Tc value for the pure MgB2 is 18.9K under 8 Tesla applied field, while is 20.8K for the 10-wt % n-SiC doped sample under the same field. This points towards the increment in upper-critical field value with n-SiC addition. The irreversibility field for the 5% n-SiC added sample reached 11.3, 10 and 5.8 Tesla, compared to 7.5, 6.5, and 4.2 Tesla for the pure MgB2 at 5, 10 and 20K respectively (Fig.7.3). The critical current density for the 5-wt % n-SiC added sample is increased by a factor of 35 at 10K and 6.5 Tesla field and by a factor 20 at 20K and 4.2 Tesla field. These results are understood on the basis of superconducting condensate (sigma band) disorder and ensuing intrinsic pining due to B site C substitution clubbed with further external pinning due to available n-SiC/Mg2Si pins in the composite system.

Thermoelectric power, S(T) of the Mg1- xAlxB2 system has been measured for x = 0.0, 0.1, 0.2, 0.4, 0.6, 0.8 and 1.0. XRD, resistivity and magnetization measurements are also presented. It has been found that the thermoelectric power is positive for x ≤ 0.4 and is negative for x ≥ 0.6 over the entire temperature range studied up to 300 K, see Fig.7.1. The thermoelectric power of x ≤ 0.4 samples vanishes discontinuously below a certain temperature, implying existence of superconductivity. In general, the magnitude of the thermoelectric power increases with temperature up to a certain temperature, and then it starts to decrease towards zero base line. In order to explain the observed behaviour of the thermoelectric power, we have used a model in which both diffusion and phonon drag processes are combined by using a phenomenological interpolation between the low and high temperature behaviours of the thermoelectric power. The considered model provides an excellent fit to the observed data. It is further found that Al doping enhances the Debye temperature.

We report the synthesis and variation of superconductivity parameters such as transition temperature Tc, upper critical field Hc, critical current density Jc, irreversibility field Hirr and flux pinning parameter (Fp) for the MgB2-xCx system with nano-Carbon doping up to x=0.20. Carbon substitutes successfully on boron site and results in significant enhancement of Hirr and Jc(H). Resistivity measurements reveal a continuous decrease in Tc under zero applied field, while the same improves remarkably at higher fields with an increase in nano-C content for MgB2-xCx system. The irreversibility field value is 7.6 & 6.6 Tesla at 5 and 10K respectively for the pristine sample, which is enhanced to 13.4 and 11.0 Tesla for x = .08 sample at same temperatures, see Fig.7.2. Compared to undoped sample, critical current density for the x=0.08 nano-Carbon doped sample is increased by a factor of 24 at 10K at 6 Tesla field.

Polycrystalline MgB2-nDx (x= 0 to 0.1) samples are synthesized by solid-state route with ingredients of Mg, B and n-Diamond. The results from magneto-transport and magnetization of nanodiamond doped MgB2-nDx are reported. Superconducting transition temperature is not affected significantly by x up to x = 0.05 and latter decreases slightly for higher x > 0.05. R(T) vs H measurements show higher Tc values under same applied magnetic fields for the nano-diamond added samples, resulting in higher estimated Hc2 values. From the magnetization measurements it was found that irreversibility field value for the pristine sample is 7.5 Tesla at 4 K and the same is increased to 13.5 Tesla for 3-wt% nD added sample at the same temperature. The Jc(H) plots at all temperatures show that Jc value is lowest at all applied fields for pristine MgB2 and the sample doped with 3-wt% nD gives the best Jc values at all fields. For the pure sample the value of Jc is of the order of 105 A/cm2 at lower fields but it decreases very fast as the magnetic field is applied and becomes negligible above 7 Tesla. The Jc is 40 times higher than pure MgB2 at 10 K at 6 Tesla field in case of 3%nD doped sample and its value is still of the order of 103 A/cm2 at 10 Tesla for the same sample. On the other hand at 20K the 5%nD sample shows the best performance at higher fields (Fig.7.4). These results are discussed in terms of extrinsic pinning due to dispersed n-Diamond in the host MgB2 matrix along with the intrinsic pinning due to possible substitution of C at Boron site and increased interband scattering for highly doped samples resulting in extraordinary performance of the doped system.
